Channel letter vector requirements: what the fabrication file needs.
A channel letter file needs one clean, closed vector path per letter — no open ends, overlaps, or stray nodes — with all fonts outlined and the letters at final fabrication size, on separate named layers for faces and returns. The router cuts the faces and the returns are formed from those exact paths, so any flaw in the outline shows in the finished, lit letter. Auto-traced or raster logos should be redrawn as clean vector before fabrication.

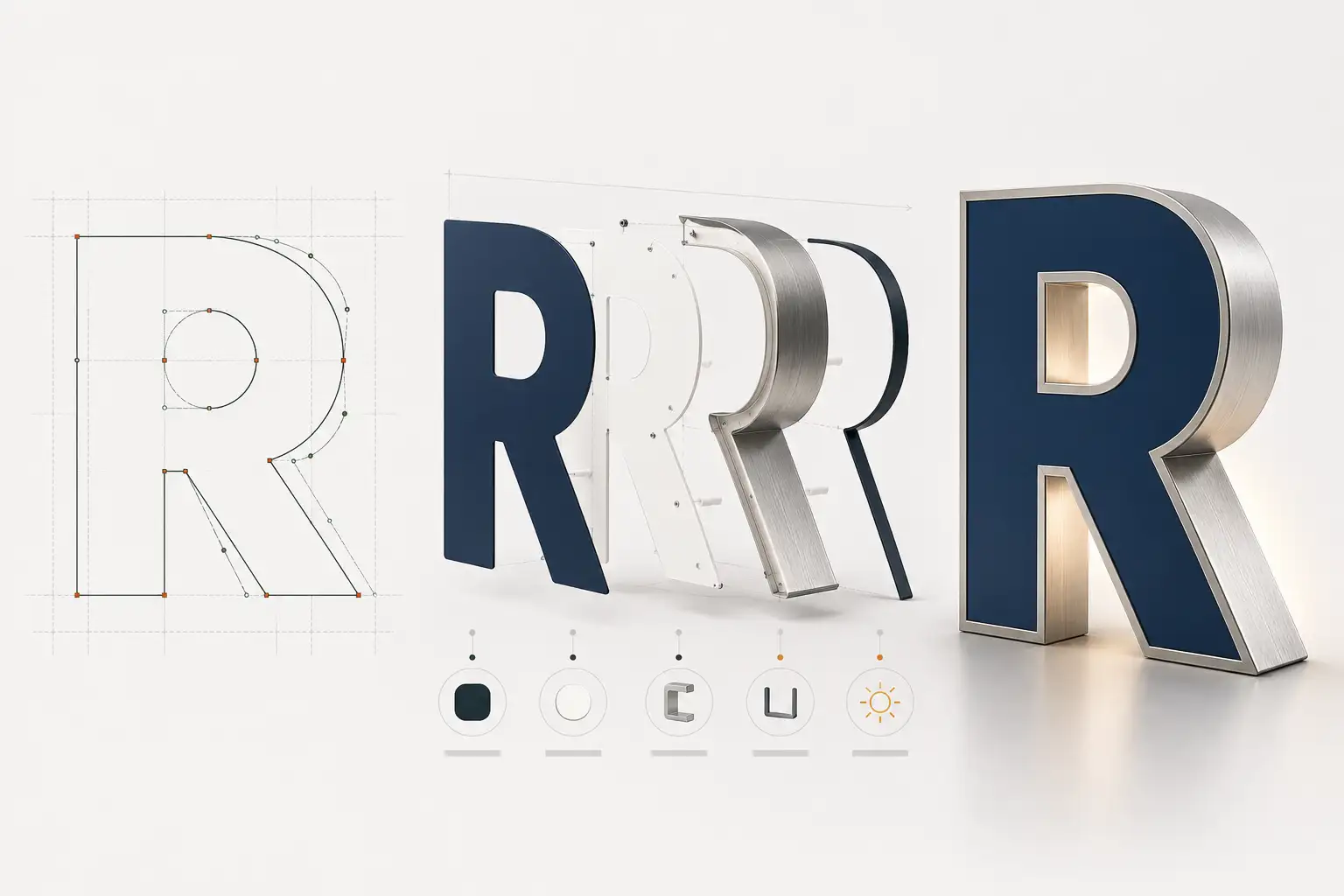

Channel letters are unforgiving because they are physical and lit. The router cuts the faces straight from your paths and the returns are formed to match, so the outline in the file becomes the letter on the wall. A clean vector reads sharp from the street; a messy one shows every flaw. Here is what the fabrication file has to carry.
Send the logo. Get clean, closed letter paths back.
Redrawn by hand at fabrication scale, fonts outlined, layered for faces and returns — production-correct in 24 hours.
Need something custom? Email hello@vectorwiz.com

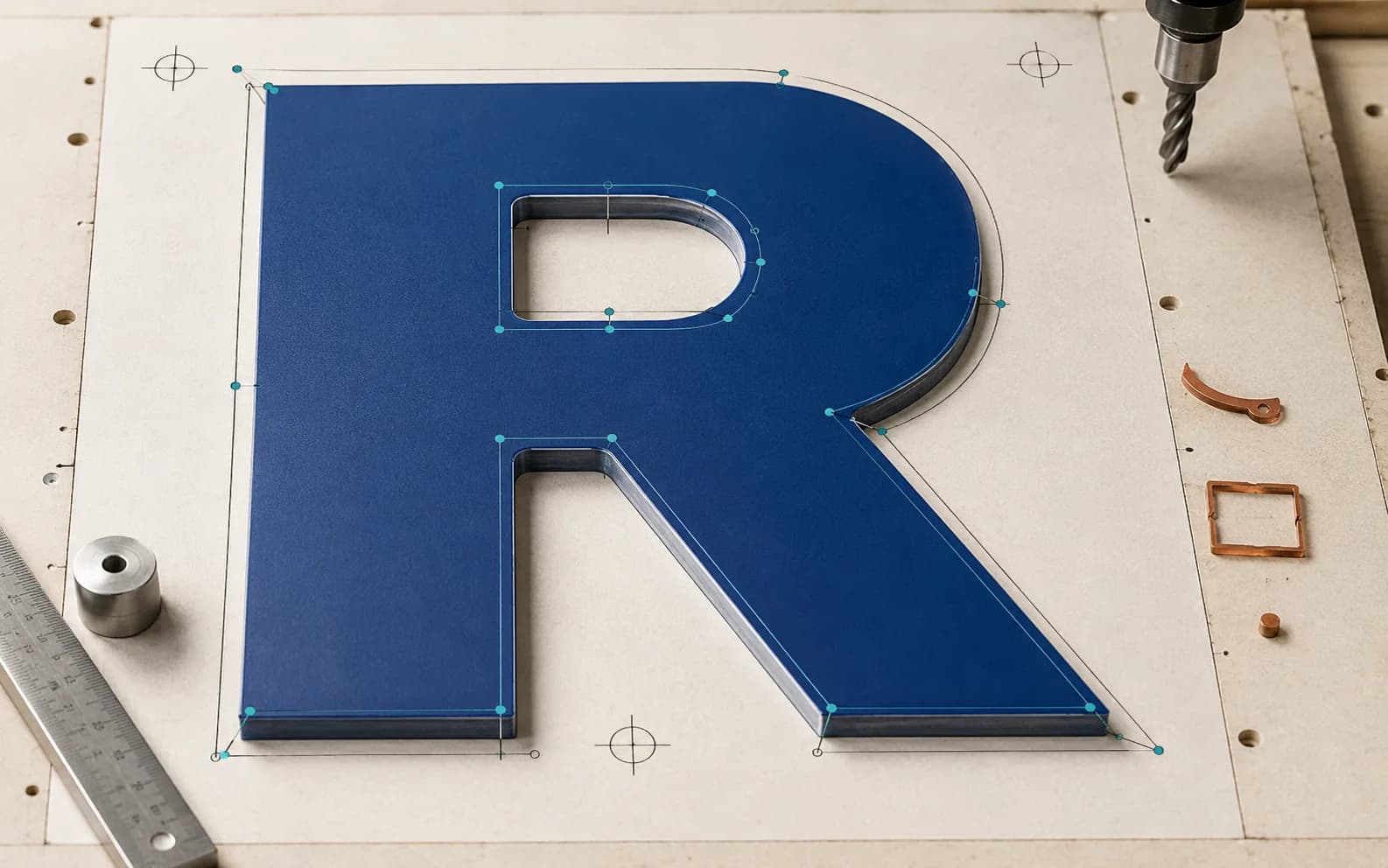

One clean closed path per letter
Every letter is a single closed path — no open endpoints, no overlapping segments, no duplicate or zero-length nodes. Those artifacts are exactly what hangs up a router or produces a wavy edge. Counters (the holes in an A, O, or R) are proper compound paths, not filled over. The cleaner the outline, the cleaner the routed face.
Fonts outlined, at fabrication scale
Convert all type to outlines in the production file — the router cuts the paths literally, so live text that could reflow or substitute is a risk. Build the letters at final fabrication size so nothing is scaled or guessed at the machine. Keep a separate editable master in case the wording or layout changes later.

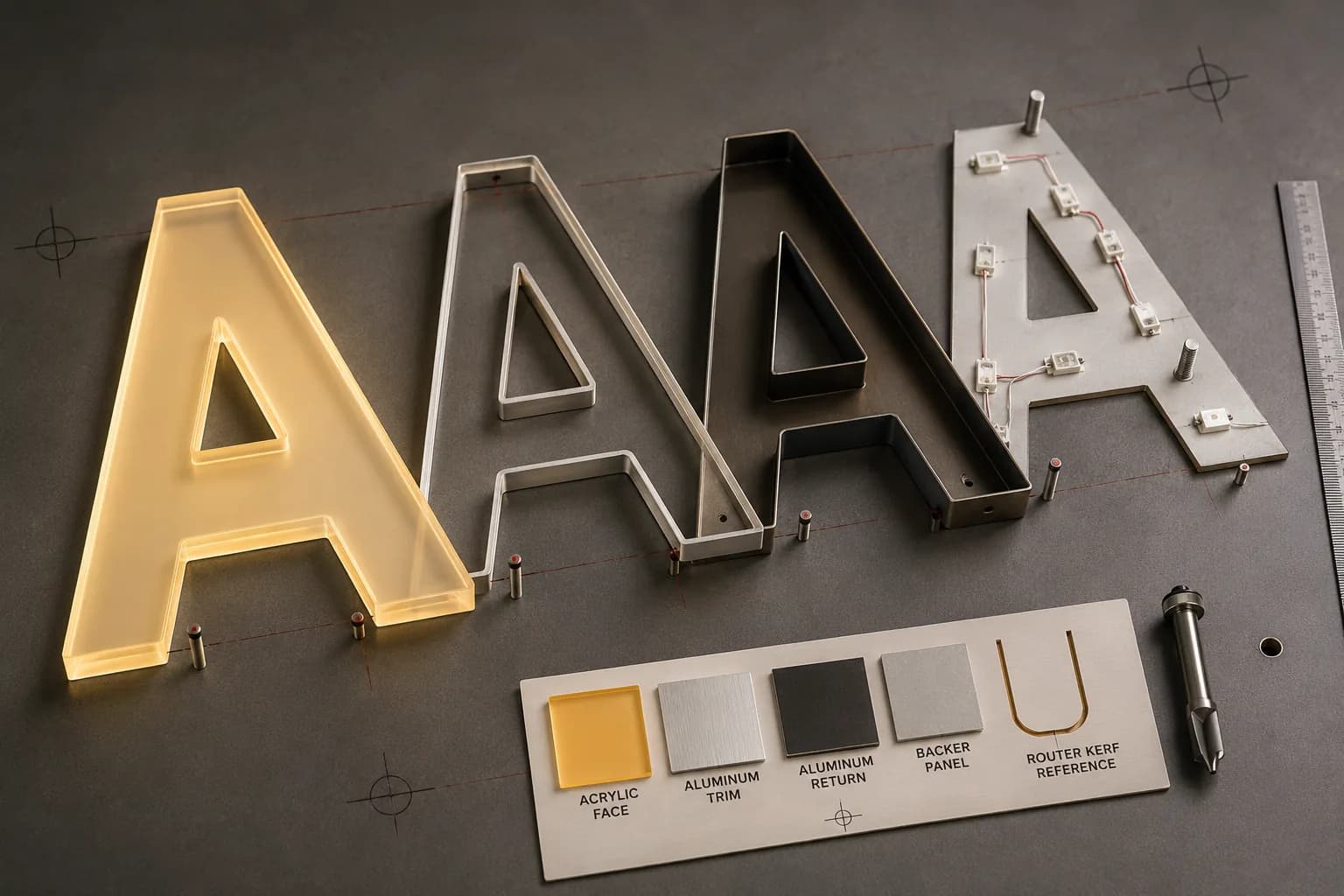

Layer for faces, returns, and trim
A channel-letter sign is not just the front face. Put the faces, the returns (the sides that give the letter depth), and any trim cap or backer on separate named layers, each as clean closed paths. That lets the fabricator route the faces, form the returns, and handle the trim without untangling one merged outline — the same discipline as any production sign file.
If it drives a router, it's a DXF question too
When the faces are CNC-routed, the same rules that apply to any cut file apply here: closed paths, correct units, and kerf accounted for so the routed part matches the art. See the DXF kerf compensation guide for the offset details behind a clean cut.
Frequently asked questions
What does a channel letter vector file need?
One clean, closed path per letter — no open ends, overlaps, or stray nodes — with fonts outlined to paths and the letters at final fabrication size. The faces and returns get routed and formed from those paths, so a messy outline becomes a messy letter. Keep separate named layers for face, return, and any trim.
Why can't I send an auto-traced logo for channel letters?
Auto-trace leaves lumpy curves, doubled paths, and floating points that the router follows literally — so the fabricated letter looks wrong up close and can misfeed the tooling. Channel letters are 3D and lit; every flaw in the path shows in the metal. They should be redrawn as clean vector by hand.
Do fonts need to be outlined for channel letters?
Yes. The fabricator's router cuts the exact paths in the file, so live text that could reflow or substitute is a liability. Convert all type to outlines in the production file, and keep a separate editable master in case the copy changes.
How should the file be layered for a channel-letter sign?
Separate named layers for the letter faces, the returns (the sides), and any trim cap or backer, each as clean closed paths. That lets the fabricator route the faces, form the returns, and handle trim without untangling one merged outline.
Can VectorWiz prep channel-letter artwork?
Yes. We redraw the logo or lettering as clean, closed vector paths at fabrication scale, fonts outlined, layered for faces and returns — production-correct for routing and forming. Standard turnaround 24 hours, Rush 12; send the spec with your order.
