Vehicle wrap templates: where to get them and how to set up art.

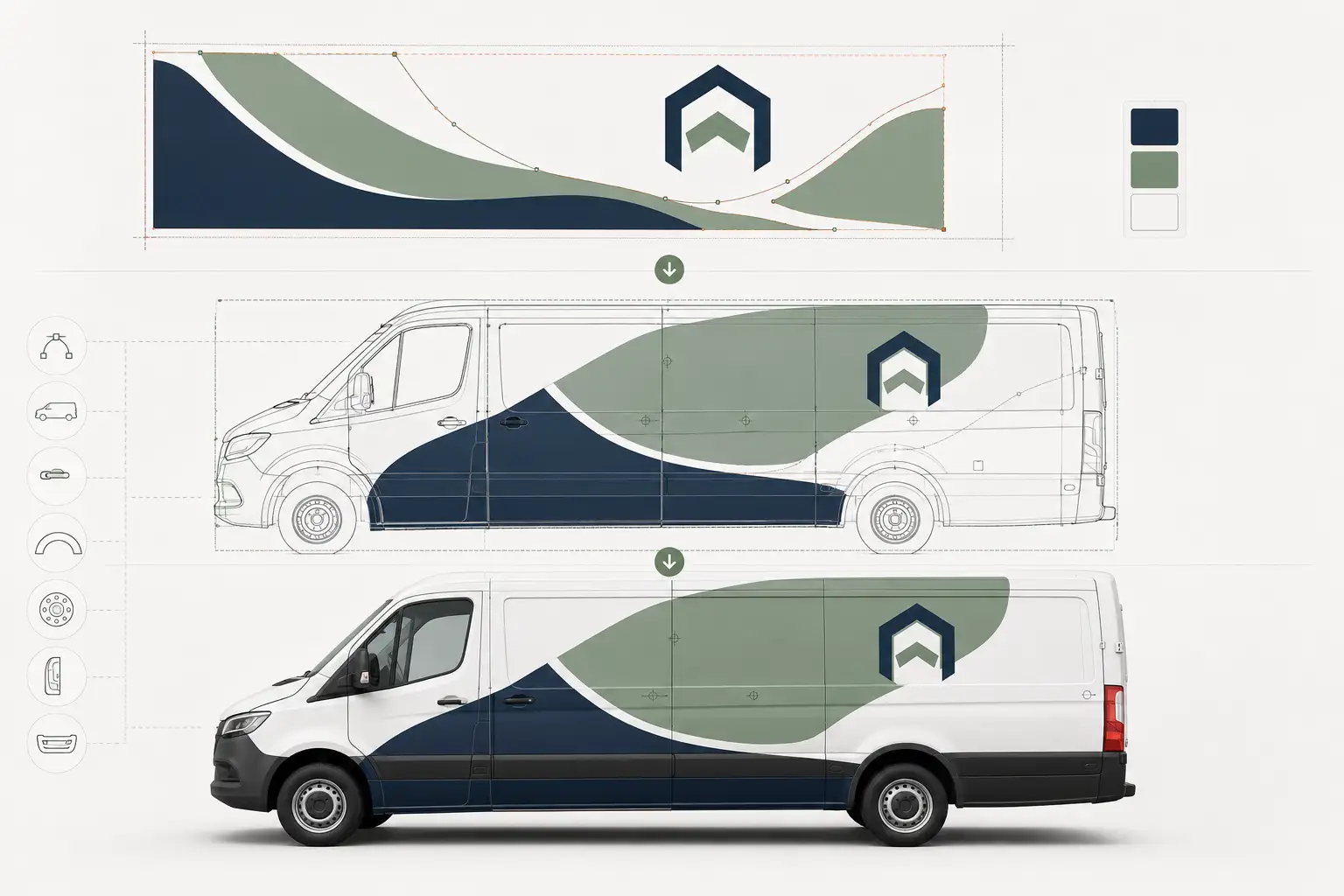

A vehicle wrap template maps the panels, seams, trim, and hardware of a specific make, model, and year so printed art lines up at install. You get one from your large-format printer or a vehicle-template library, then build your art into it at full install scale — vector, with bleed past the trim and graphics carried across the marked seams. Art built outside a real template rarely lines up on the vehicle.
A wrap template is the map. It marks where the panels split, where the seams fall, where the door handles and mirrors sit, and where the trim line is on one specific vehicle. Build your art into that map and it lines up on the vehicle; build it freehand and it will not. Here is where templates come from and how to set art into one.
Send your template. We lay the art in, panel-perfect.
Full-scale art in your printer's vehicle template — bleed, seams, contour cuts, and spot color built in. RIP-ready in 24 hours.
Need something custom? Email hello@vectorwiz.com
Where templates come from

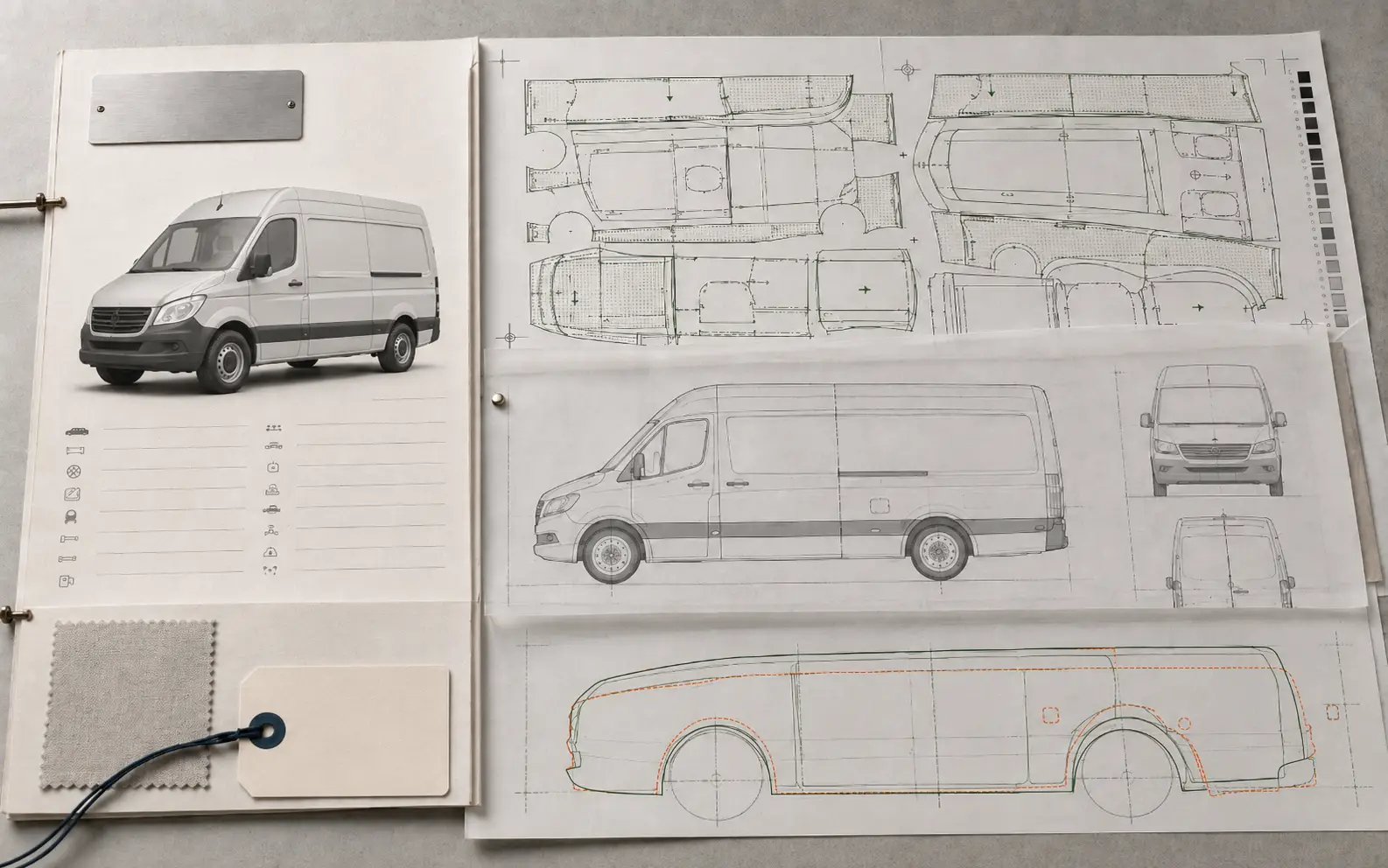

Two reliable sources. Your large-format printer usually publishes its own vehicle templates — already marked with the trim, bleed, and seam positions its workflow expects. Failing that, vehicle-template libraries provide per-make/model/year files you can drop into Illustrator. Either way, the template has to match the exact vehicle: a 2022 and a 2024 of the same model can differ enough to matter.
Build into the template, at full scale

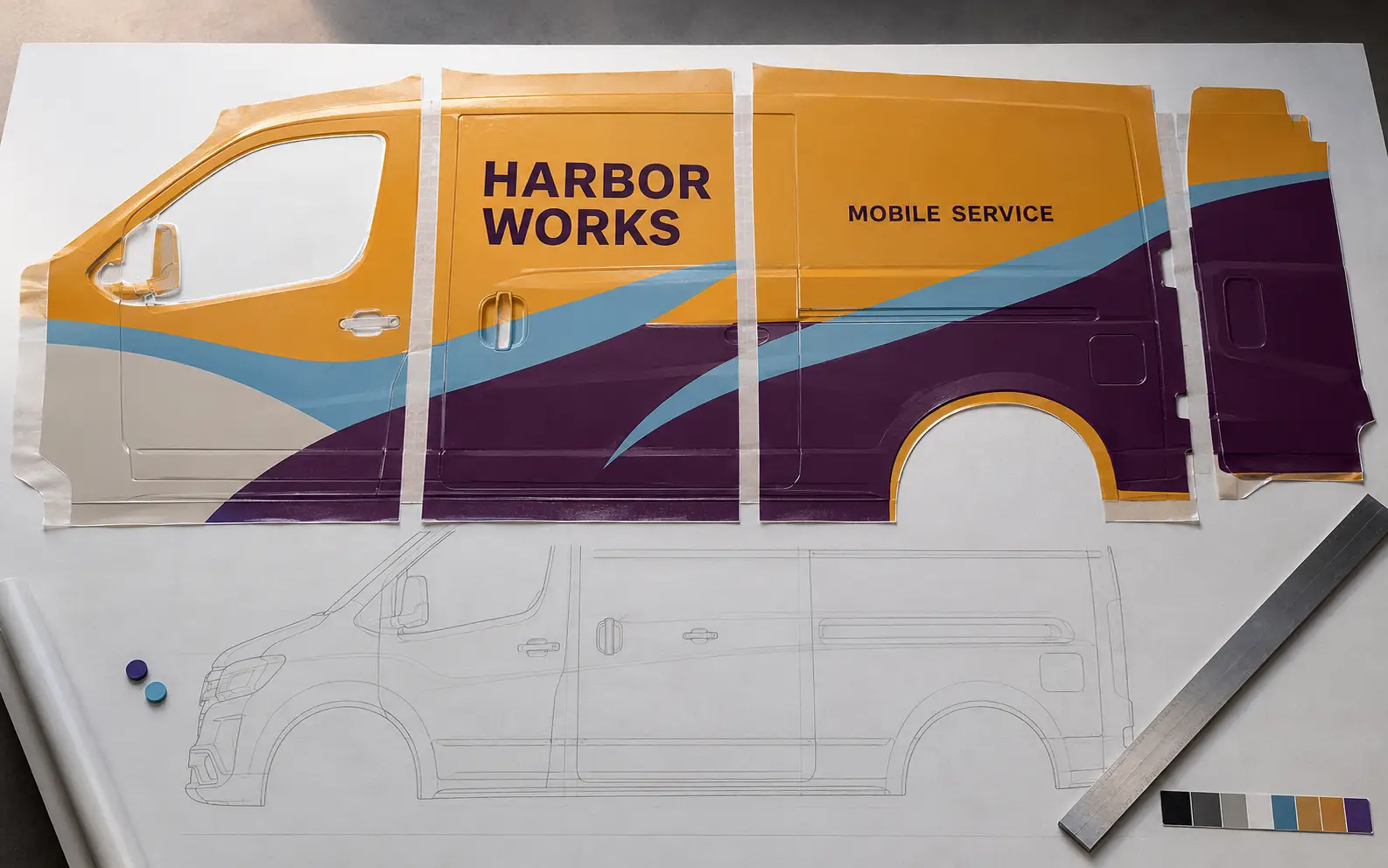

Place the template on its own locked layer and lay your art over it, at the vehicle's real dimensions. Because a wrap is the largest surface your art will ever print on, full-scale vector is the only thing that stays sharp — a scaled-up raster logo pixelates across a door. Extend every edge into the marked bleed, and carry graphics continuously across the seam lines so nothing breaks at a panel join.
Read the marks: seams, hardware, tuck areas
The template calls out door handles, mirrors, recesses, and the areas where vinyl tucks or conforms. Those marks are there so you do not run a critical piece of the logo across a handle cutout or lose it in a deep recess. Position the elements that matter — the mark, the phone number, the tagline — on flat, visible panels, and let background art flow through the busy zones.
No template? Give us the vehicle
If you cannot get a template, the make, model, and year is enough for us to lay the art out to a standard template for that vehicle. It is still worth confirming the final template with your printer before production, since their panel splits and bleed marks are what the press and installer actually follow.
Frequently asked questions
Where do I get a vehicle wrap template?
From your large-format printer or a vehicle-template library keyed to the make, model, and year. Printers often supply their own templates already marked with trim, bleed, and seam lines. If you cannot find one, give us the exact make/model/year and we lay the art out to match a standard template for that vehicle.
Do I have to design inside the template?
Yes — the template maps the panels, seams, and door and body lines for that specific vehicle, so art built outside it will not line up at install. Place your art on its own layer over the template, extend every edge into the marked bleed, and carry graphics across the marked seams.
What scale should wrap art be built at?
Full install scale — the real dimensions of the vehicle. A wrap is the largest thing your art will ever print on, so building at final size keeps vector paths sharp and nothing gets guessed at output. That is also why the art must be vector, not a scaled-up raster.
The template has cut lines and door handles marked — what do I do with them?
Keep your art clear of, or intentionally aligned to, those marks. Door handles, mirrors, and recesses are called out because the vinyl tucks or wraps there; graphics you care about should not fall across a handle cutout or a deep recess unless you plan for it.
Can VectorWiz set my art into the printer's template?
Yes. Send the template (or the make, model, and year) with your order and we lay the art in at full scale with bleed and seam overlap, contour-cut layers, and spot-matched color — delivered RIP-ready, standard in 24 hours.
